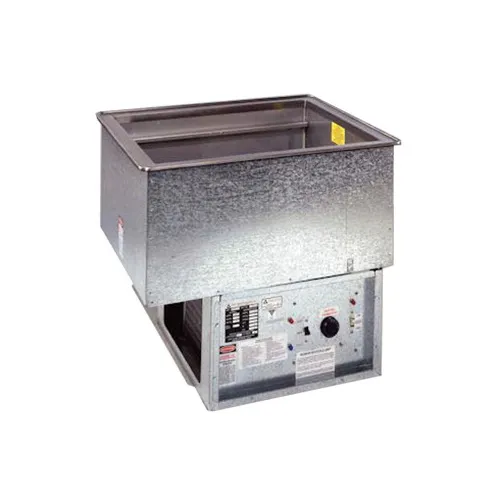

Atlas Metal RM-HP-X-2 Hot/Cold Food Drop-In Unit, 2-Pan Size

General Info

This versatile drop-in serving unit is a fully self-contained refrigerated cold pan or, at the flip of a switch, an electrically heated bain-marie. Your hot breakfast bar can be a refrigerated salad bar lunch—with one piece of equipment. The RM-HP-X Units include Hot/Cold Pan, Thermostat,Expansion Valve & Drier (for hook up in field by others).

Construction

The pan is fully insulated for maximum efficiency and energy savings, and is provided with a factory applied gasket so that is can be installed in the finest wood fixtures without marring the counter top. The pan is constructed of stainless steel and is provided with a 3/4″ stainless steel drain.

Atlas Metal RM-HP-X-2 Standard Features

• Dual Temp. - a hot serving unit becomes a refrigerated cold pan at the flip of a switch
• Fully insulated for maximum efficiency and energy savings
• Factory applied gasket - makes installation a snap and seals units to the counter top, thus eliminating seepage
• Accommodates standard 12” X 20” pans with the use of separator channel(s) and pan rails, or fractional size pans with the use of optional adapter bars
• 1-Year Parts & Labor Warranty
• NSF Certified and UL Listed

Atlas Metal RM-HP-X-2 Specifications

• WIDHT : 31-3/4” (81.2cm)
• PAN SIZE : 19-7/8” X 25-5/8” X 12-1/4” (50.4 X 65.6 X 31.1cm)
• ELECTRICAL CHARACTERISTICS :
  • HOT OPERATION : 16.7 amps. - 2KW - 120V / 14.5 amps. - 3KW - 208V / 12.5 amps. - 3KW - 240V
  • COLD OPERATION : 6.0 amps. - 120V - 1/4 HP
• SHIP WT. (LBS.): 236 (107 kg)
• OTHER DETAILS : See spec. sheet
