FWE HLC-7 UnderCounter Heated Holding Cabinets

General Informations

HLC-7, heated holding cabinet. Provided with (7) pair of tray slides at 2.625" spacings. Fixed slides accommodate 12" x 20", 18" x 13", GN 1/1 pans. Custom slide spacings available at time of order.

Construction

Stainless Steel / Insulated - Constructed of stainless steel, with welded base frame for added strength and durability - fully insulated cabinet and door provide energy efficient heating and longer holding times.

Control Panel

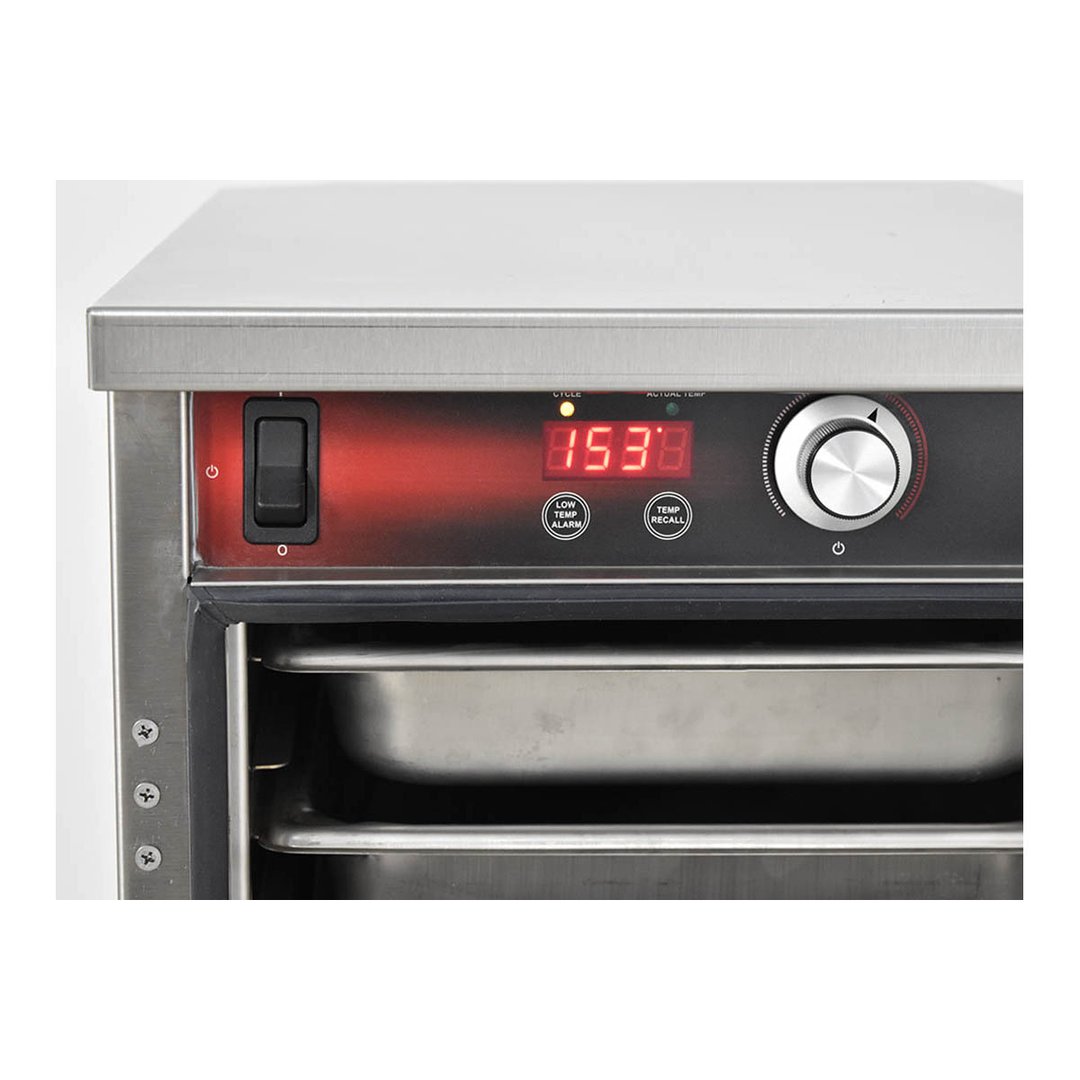

Electronic Controls - Electronic controls featuring easy to read digital display of cabinet temperature (with recall capacity of temperature set point and actual cabinet temperature), equipped with a programmable low temperature alarm, master ON/OFF switch with power indicator light.

Heat System

Radiant Heat System - FWE's natural convection heat system allows a soft heat to radiate throughout the compartment. Heat rises naturally and circulates from bottom to top without blowers. Radiant heat is best suited for short term heated holding.

Slides and Shelves

Fixed Slides for 12x20 Pans - Accommodates shallow and and deep 12" x 20" pans , 18" x 13" trays and GN 1/1 containers. Unique pan slides racks' front edges are relieved for easy loading, one piece die stamped stainless steel for extra strength, and removable for easy cleaning.

FWE HLC-7 Specifications

OVERALL EXTERIOR DIMENSIONS IN. (mm) : 30.75″ (781) H X 26,5" (673) D X 17" (432) W
NO. OF DOORS : 1
CASTER SIZE : 3.5″
SHIP WT. LBS.(KG) : 140 (64)
OTHER DETAILS : See Spec. Sheet

From The Manufacturer

Handy Line Heated Holding Cabinet, mobile, undercounter, 30-3/4”H, (1) compartment, insulated, recessed front controls, adjustable thermostat, removable pair of stainless steel racks with fixed spacing of 2-5/8", accommodates various depth pan sizes & GN containers, stainless steel insulated door with heavy duty die cast hinges, 20 gauge polished exterior with 22 gauge stainless steel interior construction, 3-1/2” all swivel casters, UL, NSF, cULus, UL EPH Classified, IPX4

Manufacturer	FWE
Model Number	HLC-7
Weight	140 lbs
Width	17″
Depth	26.5″
Height	30.75″
Size	1 compartment
Door Type	solid door
Door Style	full door(s)
Insulation	insulated
Exterior Finish	all stainless steel exterior
Heater	bottom mounted
Slide Centers	fixed on 2-5/8"
Section	1 section
