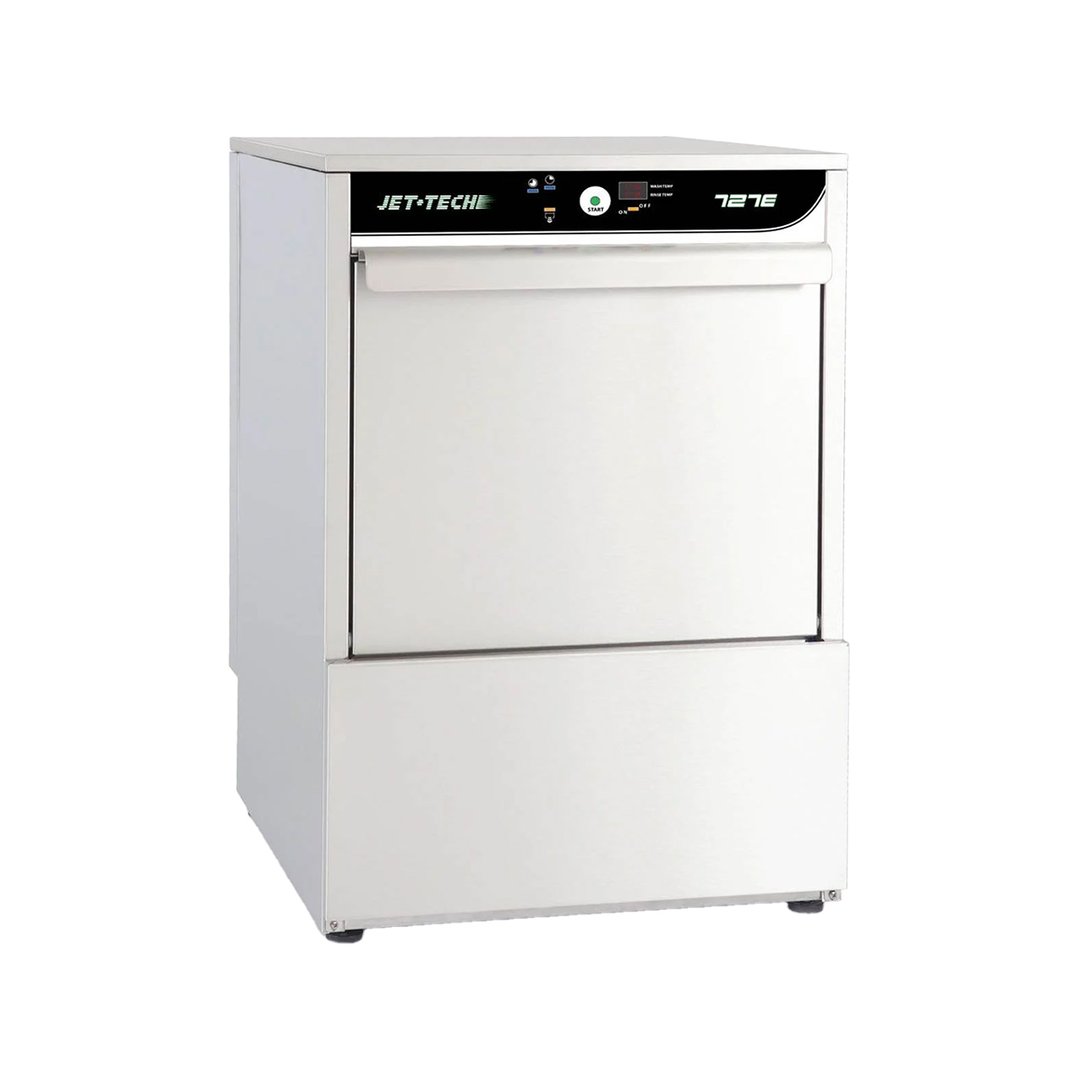

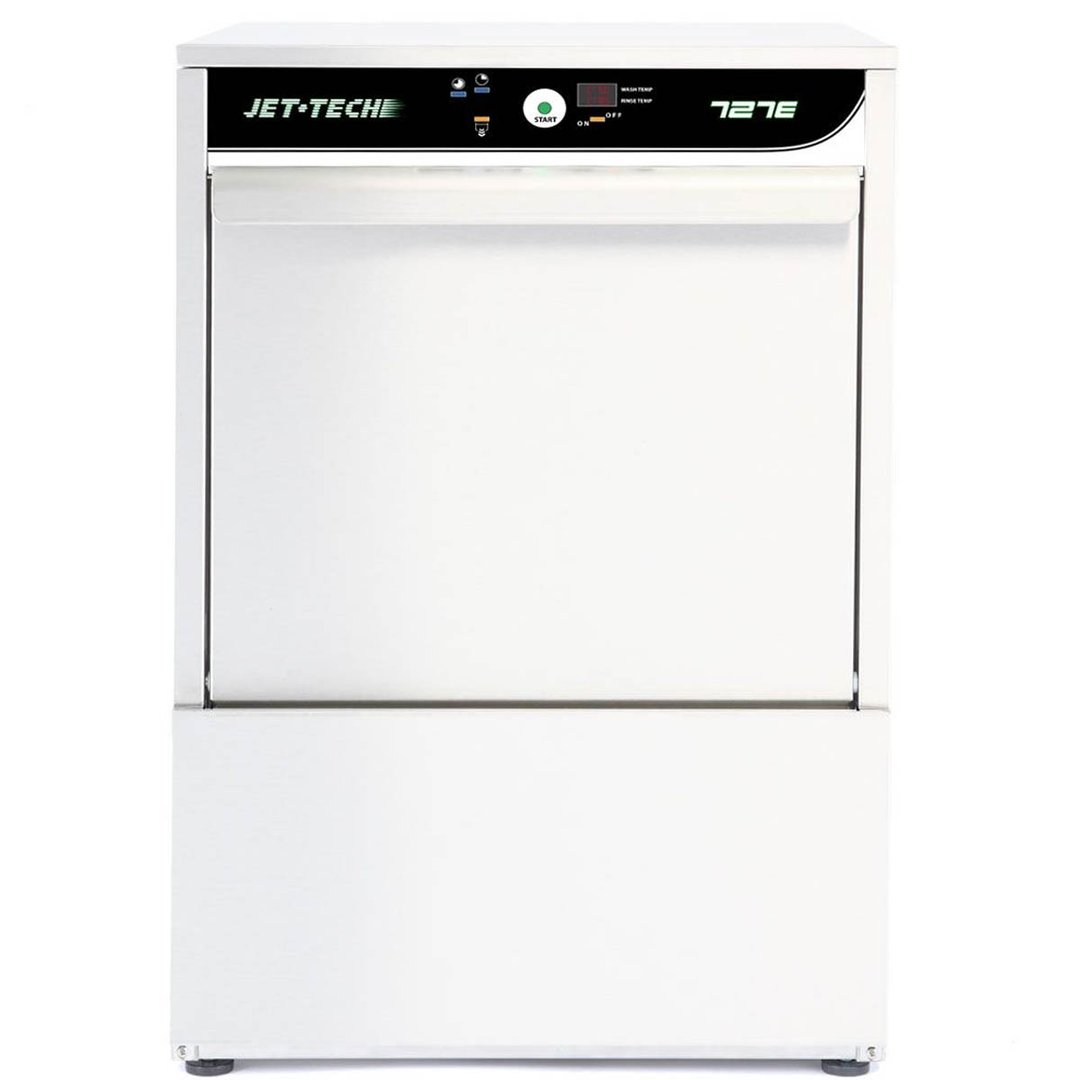

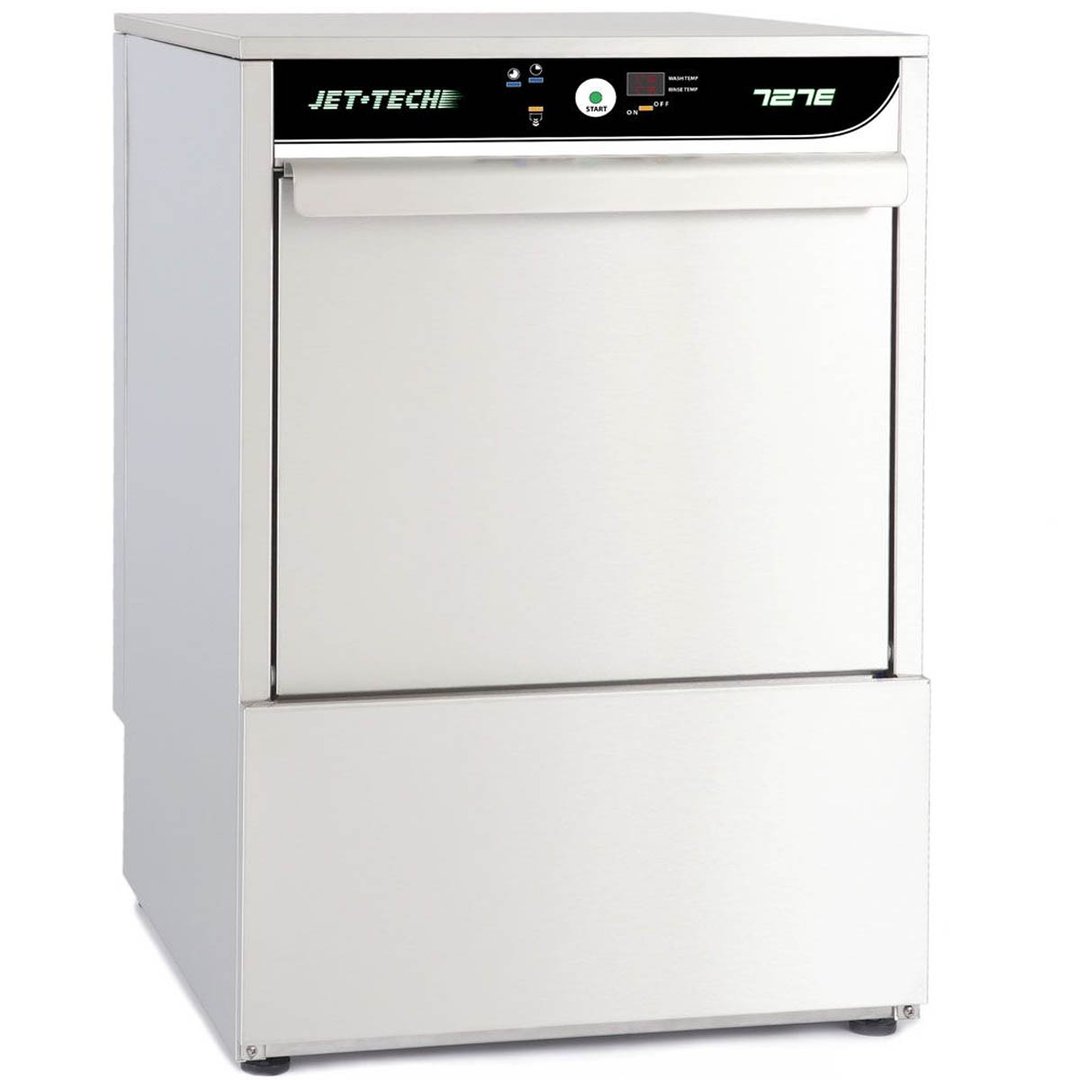

Jet-Tech 727-E 20“ Door Type Undercounter Glasswasher, High Temp, 30 Racks Per Hr

Jet-Tech 727-E 20" Door Type Undercounter Glasswasher, High Temp, 30 Racks Per Hr

MVP-727-E
Details

Jet-Tech 727-E 20" Door Type Undercounter Glasswasher, High Temp, 30 Racks Per Hr

SKU MVP-727-E

$4,260.38

Net 30 or as low as 104.01/mo with Credit Key Apply Now


Contact us Contact us for best pricing!

Resources

Product PDF

Jet-Tech 727-E Specs

Brand Jet-Tech
Model Number 727-E
Weight 118 lbs
Width 20.25"
Depth 20.5"
Height 29.5"
Glasses Per Hour (approx) 1080
Rack Per Hour (approx) 30 racks per hr
Style door type
Temperature high temp with booster
Cabinet base fully enclosed
Installation Type undercounter
Direction straight in
Energy Efficiency ENERGY STAR®
Rack Size 16" x 16"
Number Of Wash Cycle 3
Water Consumption(Approx) 0.52 Gallons Per Cycle
Drain Type pump drain system

The Jet-Tech 727E High-Temp Cup & GlassWasher

Jet-Tech 727E Features

  • ThermoStop System: Guarantees 185F (85C) final rinsing temperature, regardless of incoming water temperature
  • OneGO™: Jet-Tech's electronic control system featuring intelligent Software LED interface and multiple function analysis. OneGO™ soft touch buttons allows you to run a selection of four different cycles, all in one easy touch!
  • SmartSelf diagnostics: have all necessary advanced service diagnostics information at your fingertips!
  • EasyGO: Jet-Tech's ‘soft-start’ washing system protects your valuable dishes and glassware from any chippage or breakage
  • EnergyStar: qualified extremely low water and electrical consumption maximizing your profits
  • Model 737E is fully equipped with a built-in booster for high temperature rinse water, automatic peristaltic pumps for both liquid detergent and rinse-additive, and an automatic drain pump that has the exclusive ‘wash-down’ feature at the end of the work day for a self-cleaning operation.
The Jet-Tech 727E High-Temp Door Type Dishwasher, Chef's Deal

Jet-Tech 727E Construction Features

  • Body, external housing, wash tank and all chassis component in brushed stainless Steel - type AISI 304 18 gauge
  • Noise 58 DbA due to utilization of double-walled insulated panels
  • Upper and lowerwash and rinse jets on revolving arms constructed of stainless Steel; easy to remove and clean without the need for tools
  • Integrated AISI 304 18/10 stainless steel booster with insulated lining
  • Safety micro-switch on the door to interrupt wash pump action
  • Reinforced door hinge system
  • Independently-operated heating elements alternating between booster and wash tank
  • Alternating heating resistors reducing maximum absorption thereby reducing energy costs
  • Inner washing chamber with coved corners and one-piece stamped wash tank provides user with the most sanitary environment.
  • Possibility of built-in or free-standing installation
  • Wash pump protected with double filters, plus additional filter for overflow tube
  • Door-opening with overall clearance of 10.8 in. (273 mm)
  • Automatic fill and water level regulation of tank
  • Slide out integrated front control panel provides easy access for technical service
  • Front mounted electronic control panel with digital temperature displays

Jet-Tech 727E Technical Features

  • Rack capacity: 13.75” x 13.75” (400 mm x 400 mm)
  • Total cycle: 2-3-4 minutes
  • Hourly production: 30/20/15 racks/hr. (1080/720/540 glasses/hr.)
  • Wash tank capacity: 2.9 U.S. Gallons (11 Litres)
  • Booster capacity: 0.79 U.S. Gallons (3 Litres)
  • Wash temperature: 150°F (65°C) minimum / controlled electronically
  • Final rinse temperature: 185°-194°F (85°-90°C.) minimum / controlled electronically
  • Incoming water temperature: Minimum 122°F. (50°C.)
  • Incoming water pressure: 30 p.s.i. (2 bar)
  • Water consumption per cycle @ 30 psi: 0.52 U.S. Gallons (2 Litres)
  • Washing pump power: 0.4 H.P.
  • Power supply: 208V/60HZ
  • Tank heating element: 2.0 KW
  • Booster heating element: 2.4 KW
  • Maximum power rating: 2.8 KW - 13.5 amps
  • Machine weight: 106 lbs. (48.4 kg.)
  • Ship weight: 118 lbs. (53.6 kg.)

From The Manufacturer

Jet-Tech Undercounter Glasswasher, door type, 20-1/4"W x 20-1/2"D x 29-1/2"H, double-wall stainless steel construction, high temperature with built-in electric booster heater, (30) racks/hr, OneGo™ programmable wash cycles, front-mounted controls with digital temperature display, ThermoStop™ System, detergent pump, rinse pump, SmartSelf auto diagnostic system, automatic & self cleaning drain pump system, includes: (2) 16" x 16" standard racks, 2.4 kW booster heater, 2/5 HP wash pump, cULus, CE, UL EPH, ENERGY STAR®
