Summit SBC58BLBIADAWKDTWIN 24" Draft Wine Dispenser, ADA compliant, 5.5 cu. ft.


Summit SBC58BLBIADAWKDTWIN 24" Draft Wine Dispenser, ADA compliant, 5.5 cu. ft.


Special Price $2,325.00 $2,688.26

Net 30 or as low as 56.76/mo with Credit Key Apply Now

Call or Chat Call or Chat

In Stock

Usually ships in 2-5 business days


Product PDF


Brand Summit
Weight 120 lbs
Width 23.63"
Depth 22.75"
Height 32.25"
Exterior Finish black / stainless steel
Usage Wine Dispenser
Barrel Style 1/4 Barrel
Keg Capacity 1
Column Qty 1 column / tower
Number of Taps 2
Compressor Location rear mounted
Capacity (cu. ft.) 5.5
Special Features ADA compliant, reversible door

Summit 24" Wide Built-In Wine Kegerator, ADA Compliant SBC58BLBIADAWKDTWIN

Highlights of this product

Sized at 32 inches high, the SBC58BLBIADAWKDTWIN is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use.

  • Flexible design allows built-in or freestanding use in 24" spaces
  • 32 inch height fits under lower ADA compliant counters
  • Commercially listed to NSF-7 standards

Included with the product

The SBC58BLBIWKDTWINADA ships with a complete Sankey American dual tap kit complete with a draft tower, 5 lb. nitrogen/CO2 tank and regulator, and all the equipment you need to serve white wine on tap.

Details about inside

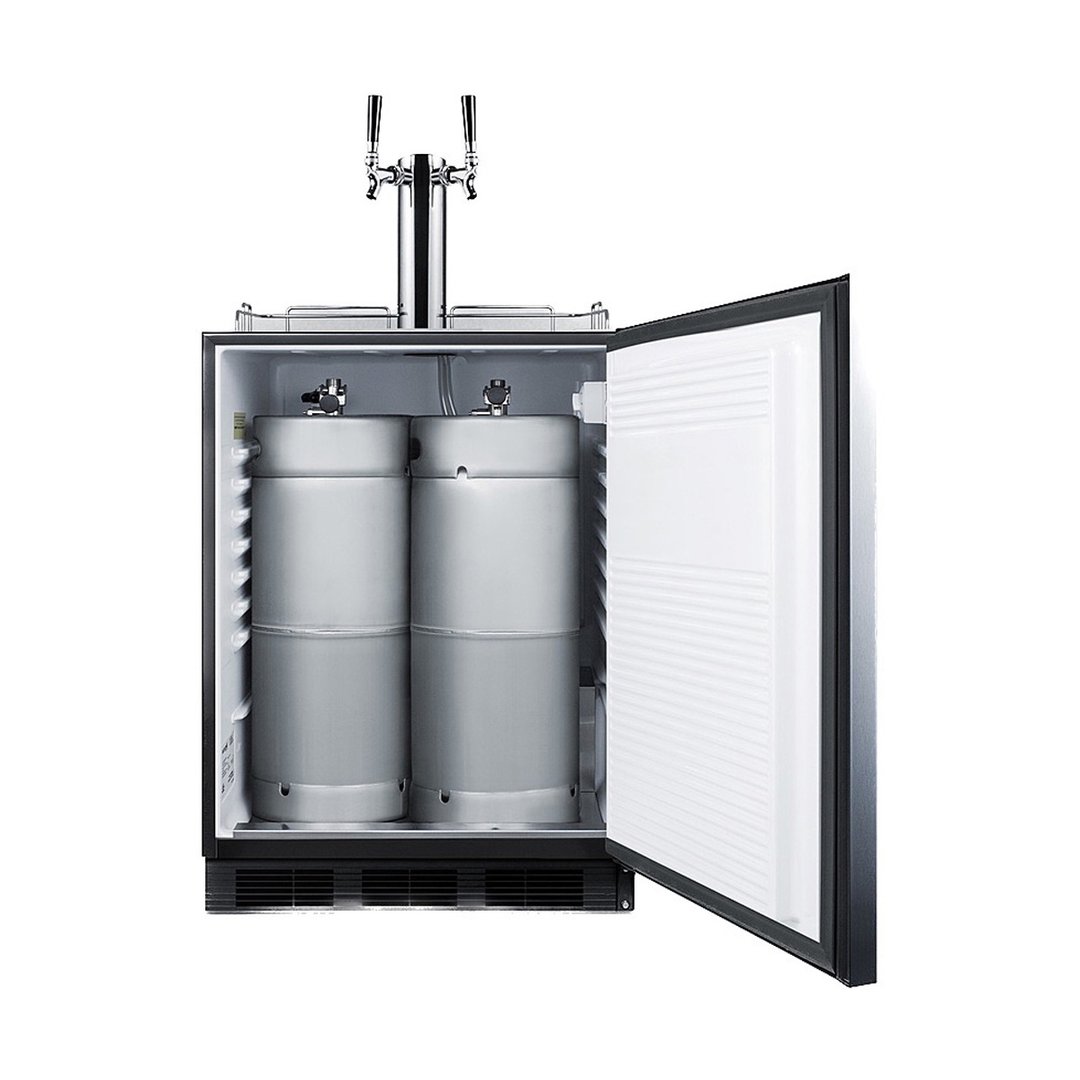

  • The SBC58BLBIADAWKDTWIN is designed to hold two 1/6 (sixtel) kegs (note: interior does not accommodate a standard half barrel).
  • Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning.
  • The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management.

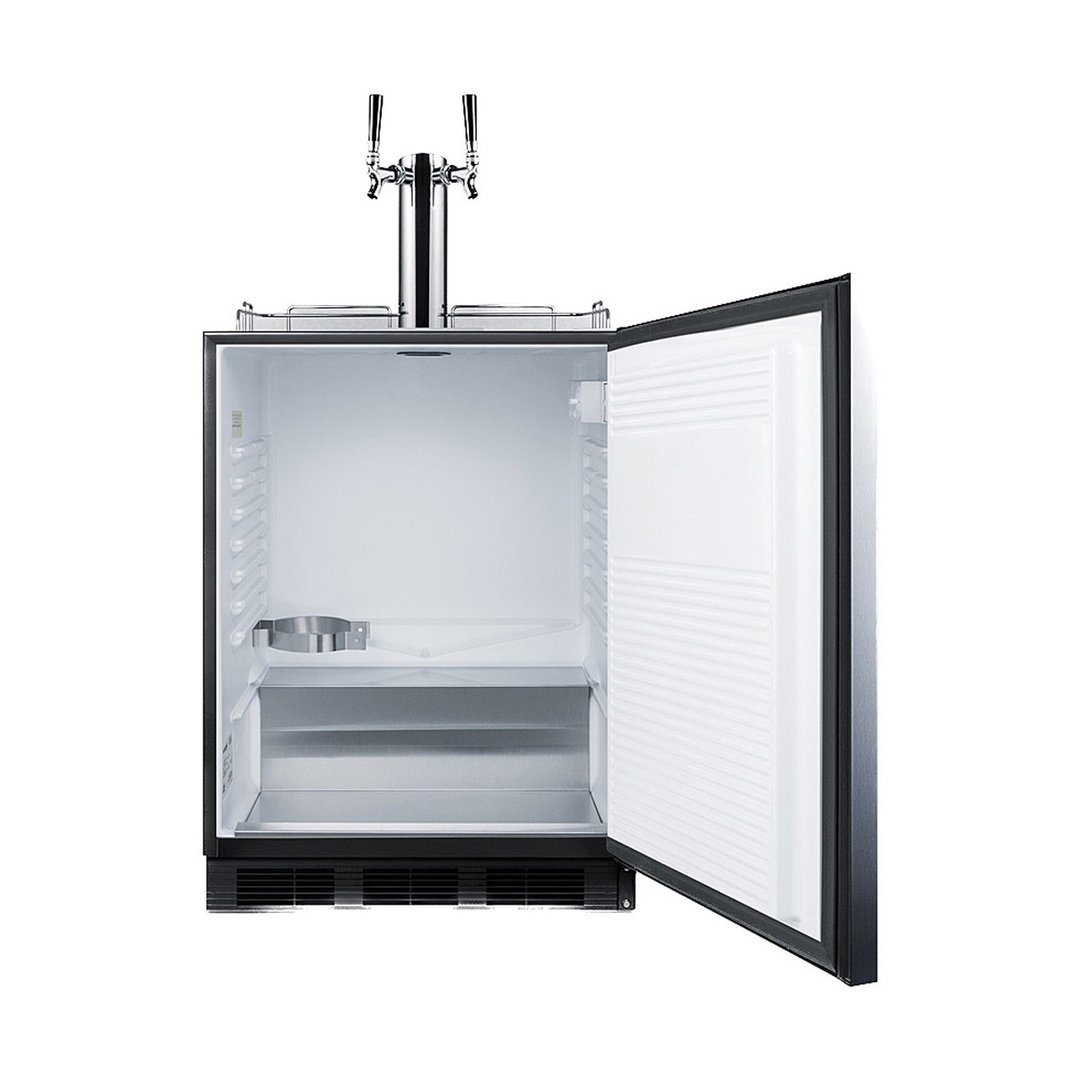

  • A bracket is located inside, allowing you to keep the tank inside and save on exterior depth.


  • ADA compliant height
  • Commercially approved
  • Built-in capability
  • Complete dual tap kit
  • Stainless steel wrapped door
  • Professional handle
  • Adjustable thermostat
  • Automatic defrost
  • Reversible door

Summit SBC58BLBIADAWKDTWIN Specifications

  • Dimensions HxWxD:32.25" H x 23.63" W x 23.5" D (82cm H x 60cm W x 60cm D)
  • Capacity:5.5 cu.ft. (156 L)
  • Defrost Type:Automatic
  • Cabinet:Black
  • Shipping Weight:120.0 lbs. (54 kg)
  • Parts & Labor Warranty:1 Year
  • Compressor Warranty:5 Years

*See spec sheet for other details and informations

From The Manufacturer

Draft Wine Dispenser, ADA compliant, built-in or freestanding, 24"W, 5.5 cu. ft. capacity, accommodates 1/6 wine keg or disposable wine keg, +34° to +43°F temperature range, dial thermostat, automatic defrost, dual tap includes 75% nitrogen/25% CO2 tank, dispenser tower, regulator, connection equipment, (1) reversible right hinged stainless steel door, interior light, stainless steel drip tray, stainless steel guard rail, seamless interior liner with stainless steel floor cover, exterior fan, black cabinet, R600a Hydrocarbon refrigerant, 115v/60/1-ph, 1.2 amps, cETLus, ETL-Sanitation, NSF-7, UL-471 (Commercial)
