T&S Brass MV-0771-12R-VB Washdown System

General Info

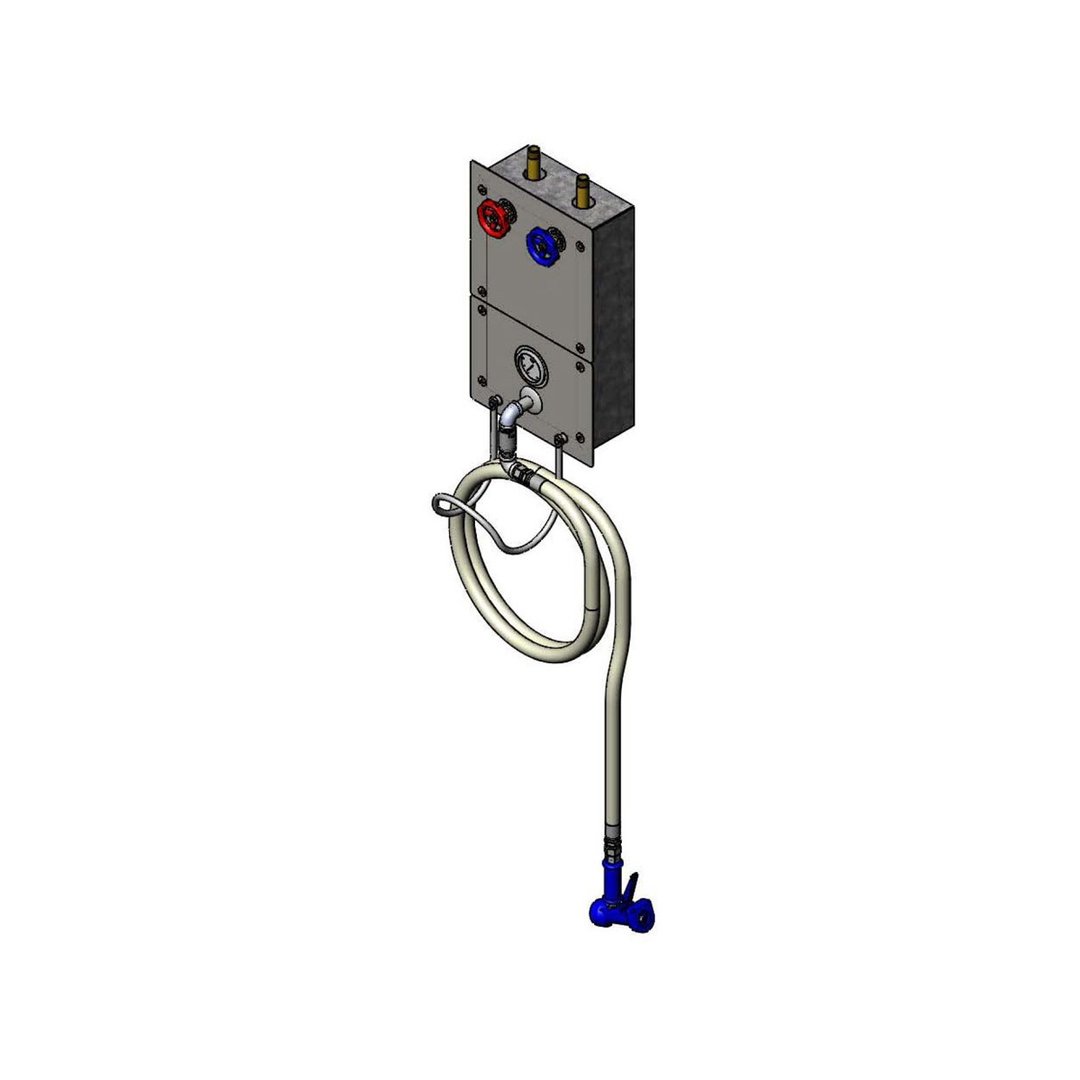

Cabinet and washdown station with 3/4" brass mixing valve, backflow preventers, thermometer, 50' hose, rear trigger stainless steel water gun, hose swivel & hose rack.

T&S Brass MV-0771-12R-VB Features

• 3/4" globe valves w/ color coded handles
• 3/4" backflow preventers to prevent cross flow of water
• Brass thermometer tee
• Stainless steel thermometer, temperature range 0 F - 200 F
• 3/4" hose swivel
• Stainless steel hose rack w/ mounting hardware
• Material: Brass tee, stainless steel thermometer, water gun and rubber hose

T&S Brass MV-0771-12R-VB Specifications

• Pressure : 20 - 125 psi
• Temperature : 40 F - 200 F
• Flow Rate : 10.60 GPM [40.1 L/min] @ 60 psi [4.14 bar]
• Other Details : See spec. sheet

From The Manufacturer

Washdown Faucet, wall mount,3/4" globe valves with color-coded handles, backflow preventers, bi-metallic thermometer with stainless steel case, 3/4" hose swivel, 3/4"I.D. x 50 ft. white creamery hose, stainless steel rear trigger water gun with rubber cover, stainless steel hose rack mount, tamper-resistant screws, recessed galvanized steel cabinet, brass thermometer tee, 3/4" NPT male inlets
