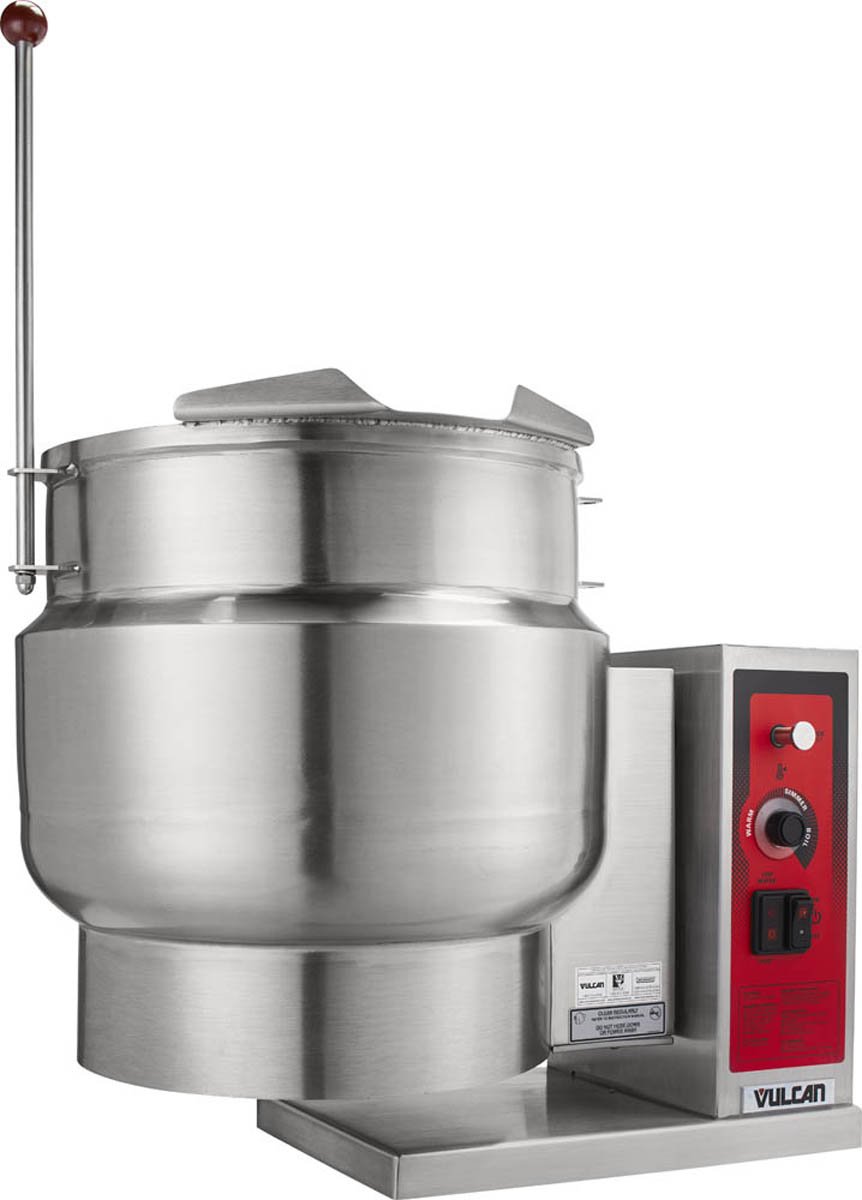

Vulcan KE SERIES ELECTRIC COUNTER TILTING KETTLE
SPECIFICATIONS

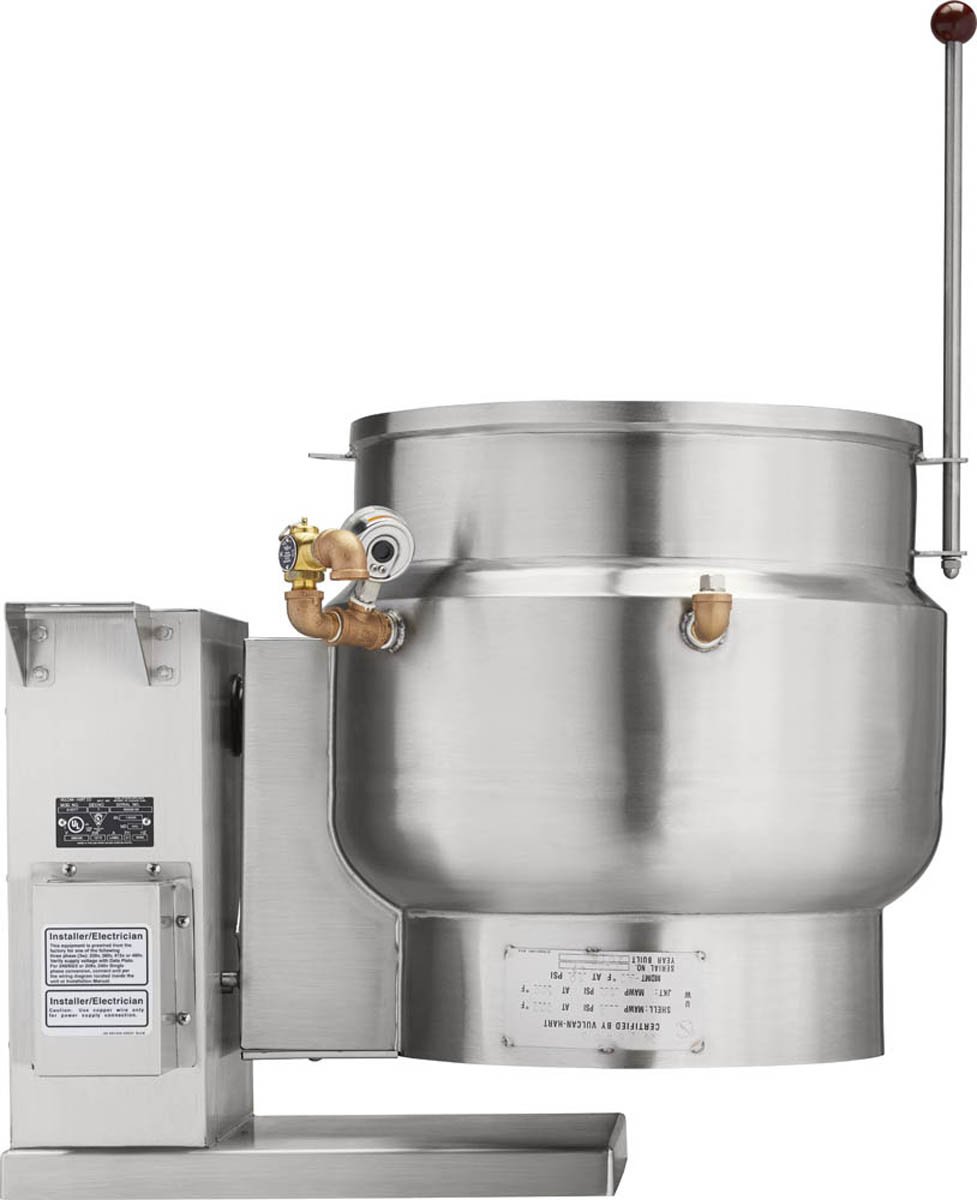

(6) (12) gallon capacity, 2⁄3 jacketed self-contained electric counter tilting kettle, Vulcan-Hart Model No. (K6ETT) (K12ETT). Ellipsoidal bottom kettle liner formed and fully welded type 316 and type 304 stainless steel exterior with 1⁄4 x 5⁄8 inch bar rim with butterfly shaped pouring lip and embossed gallon/ liter markings, designed to operate at a maximum of 50 psi (3.4 kg/cm2). Jacket contains water, rust inhibitor and antifreeze mixed to protect to 30° below zero. Removable electric elements are field serviceable. Stainless steel tilt handle can be mounted on either the right or left. Two position tilt lock, upright, 100° for emptying and cleaning. Stainless steel water tight control housing located on the right. Controls include a power switch, indicator light, solid state temperature control, vacuum/pressure gauge, pressure relief valve, low water light and low water shut-off. Mounting base includes lugs for bolting to counter top or floor stand. Shipped for 208/60-50/3 electrical service. Can be field converted to 208/60-50/1 and 240/60-50/3 and 240/60-50/1.
Exterior Dimensions:

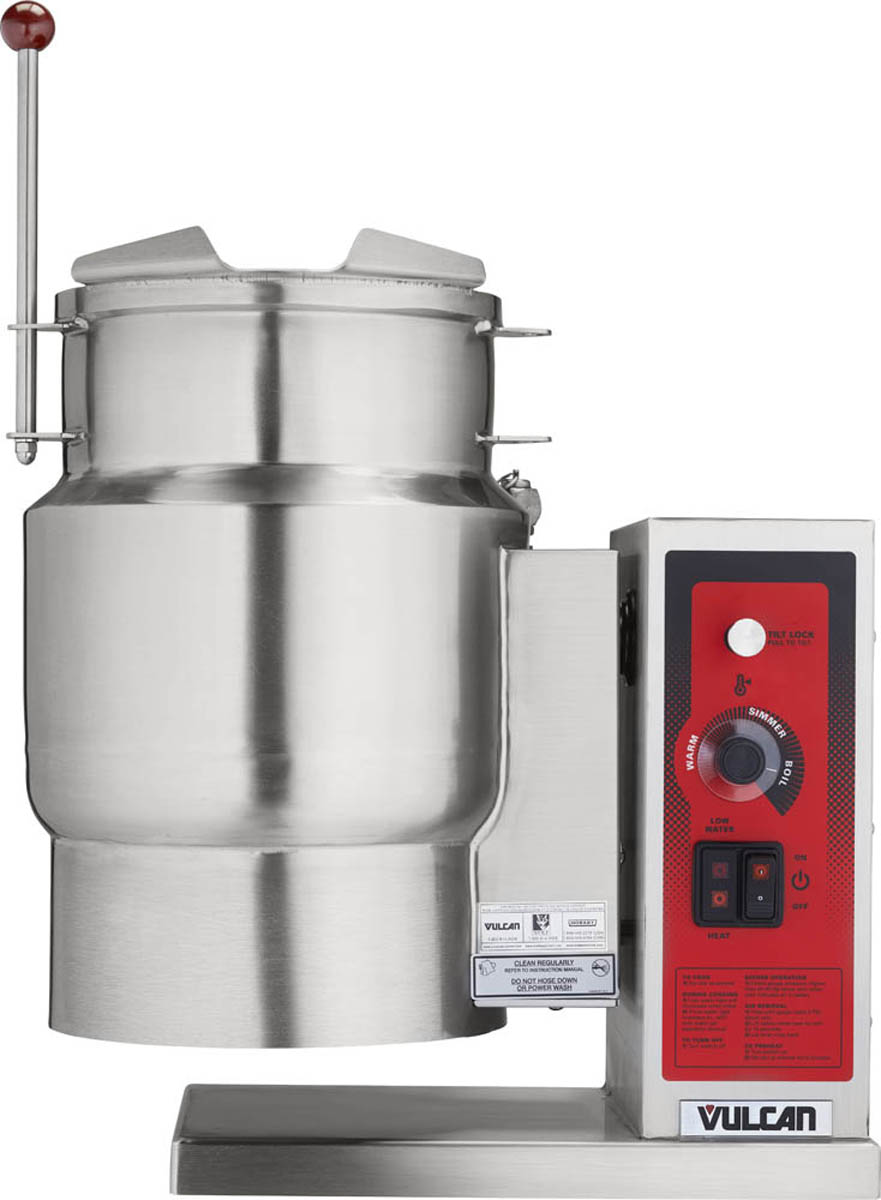

- K6ETT: 21 3⁄4"w x 15 1⁄2"d x 30 1⁄2"h.

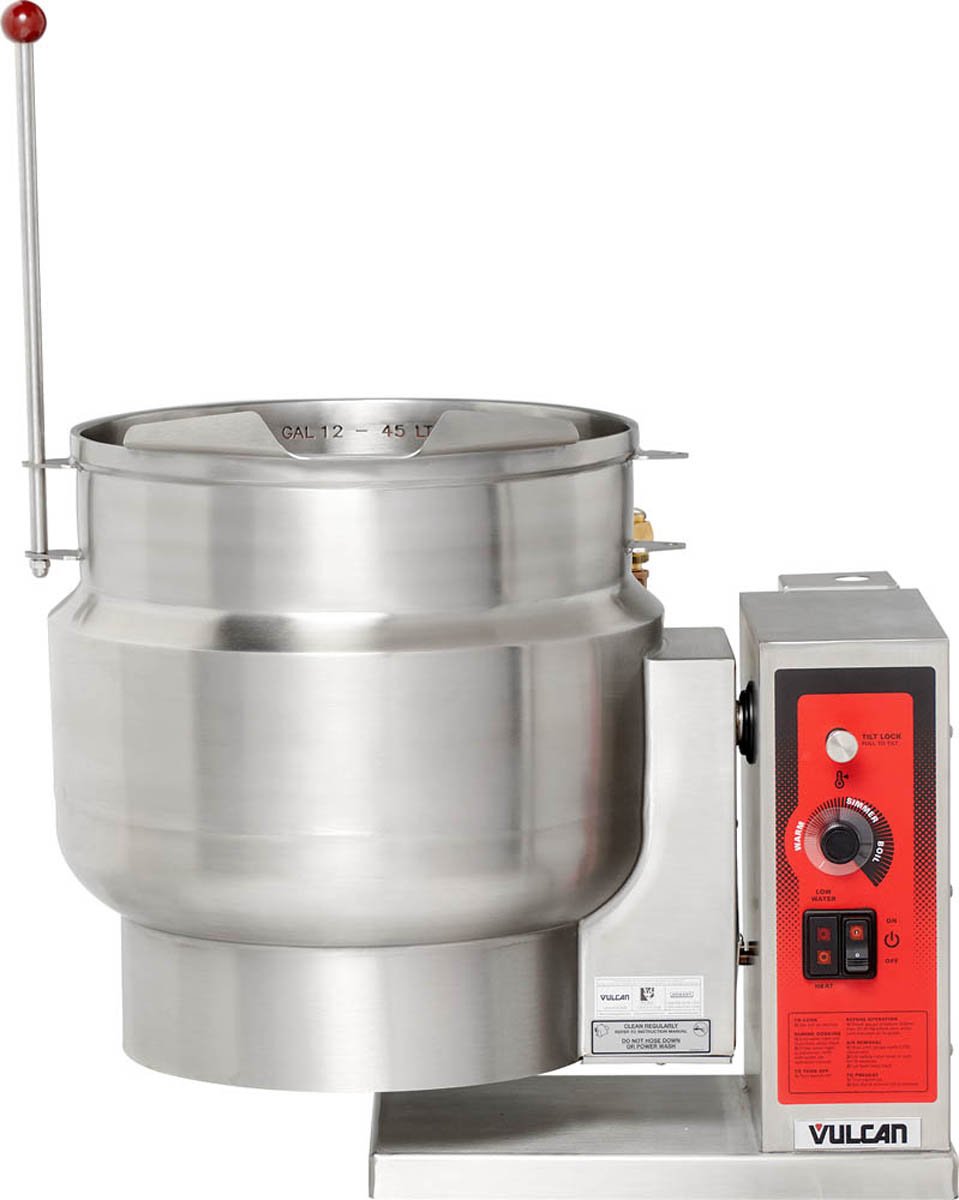

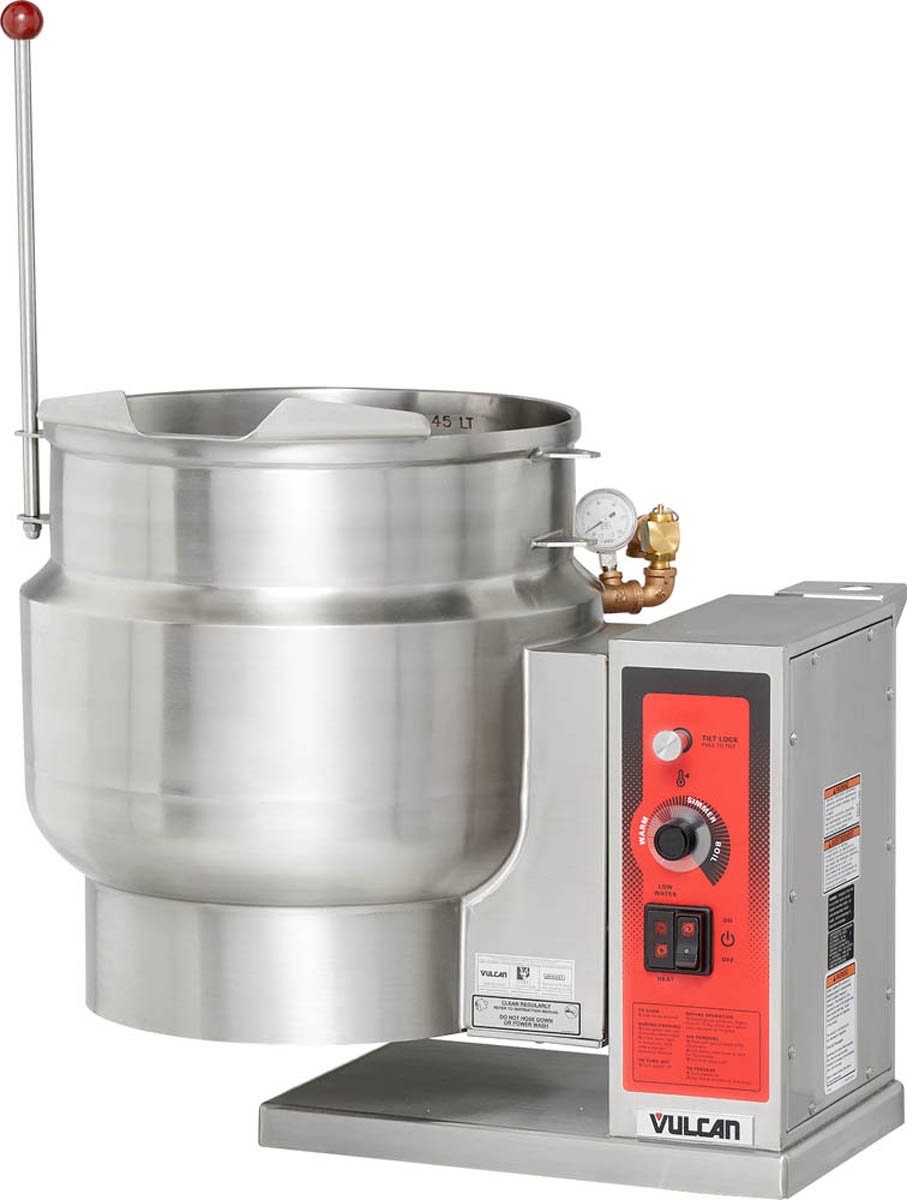

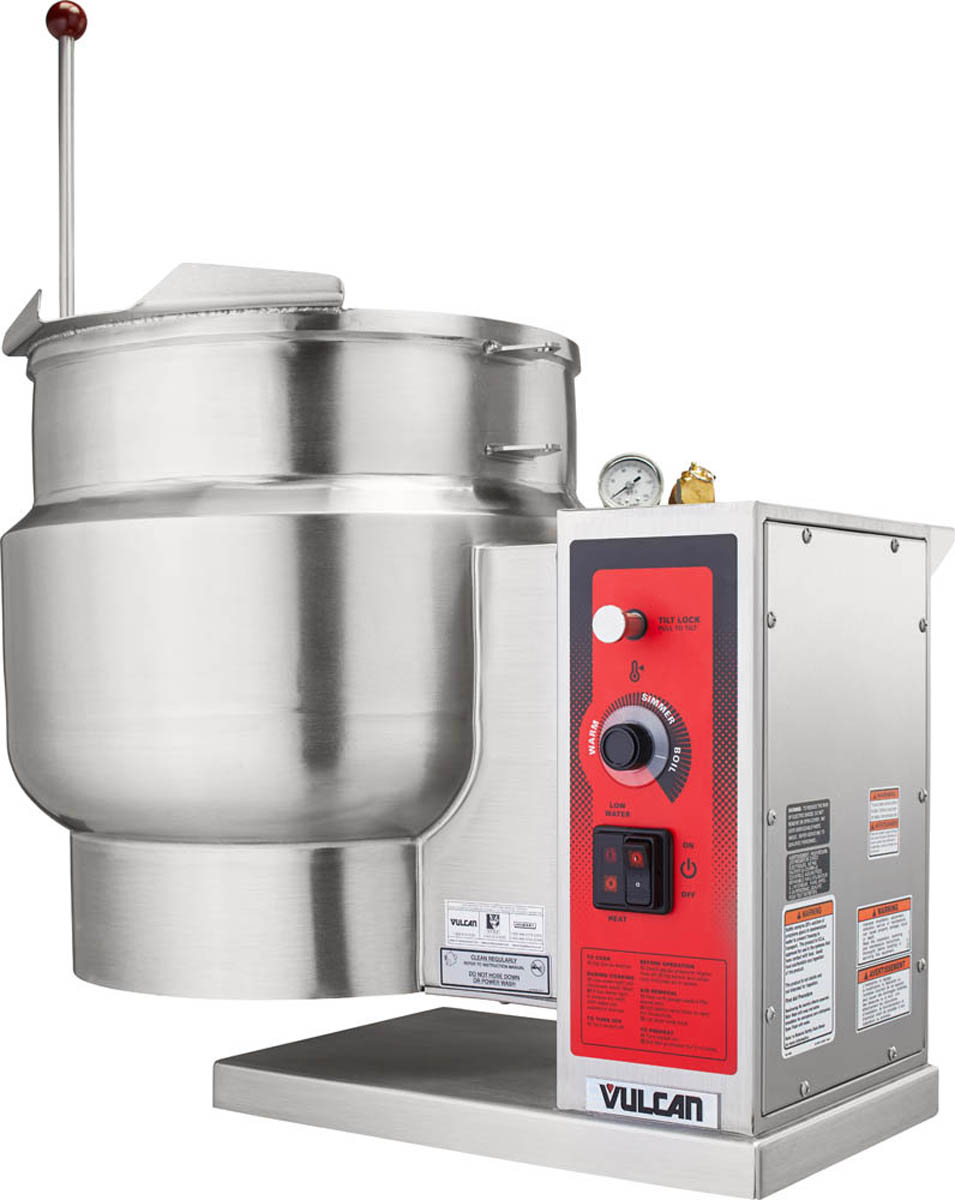

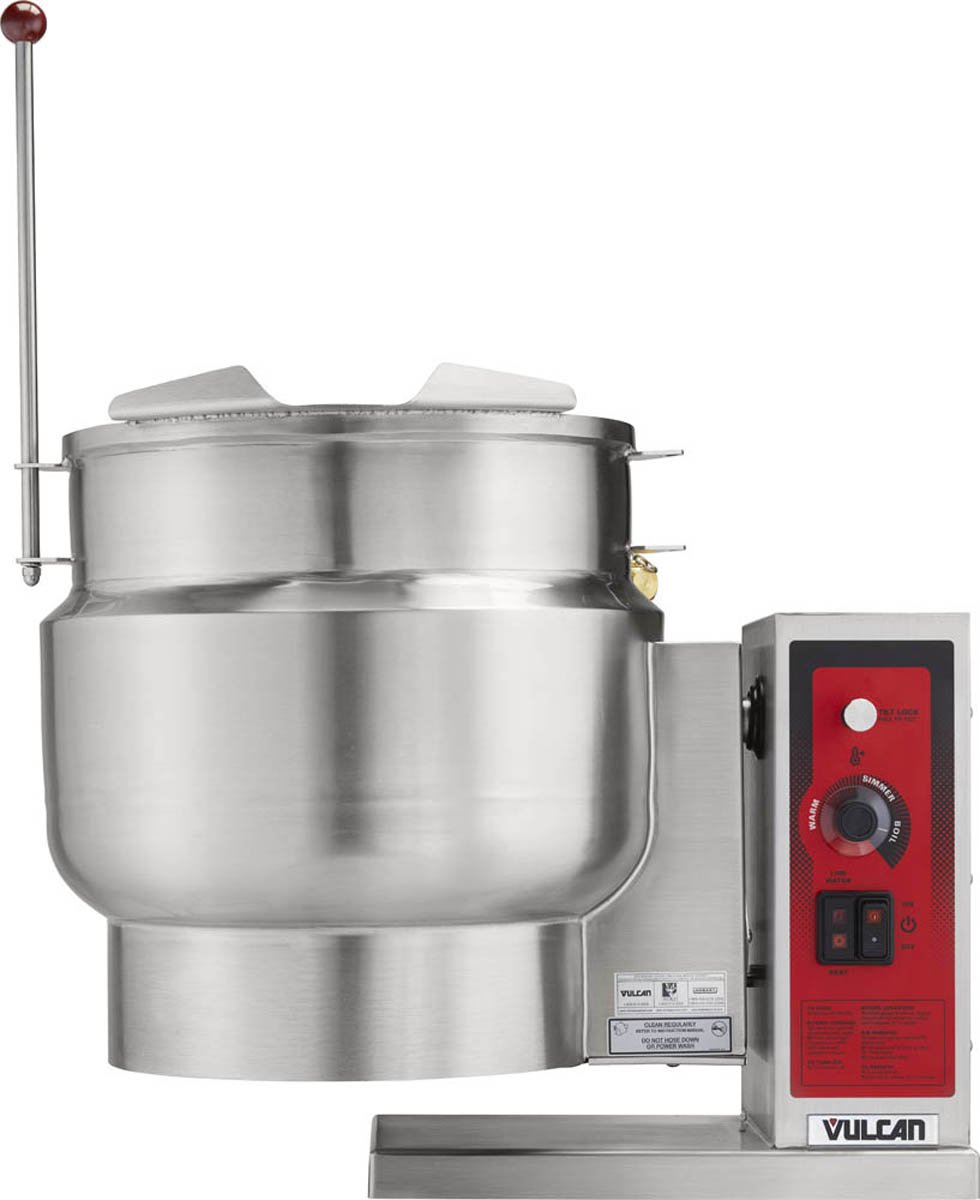

- K12ETT: 25 1⁄2"w x 19 1⁄2"d x 33"h.
- UL listed. UL Classified for sanitation in accordance with ANSI/NSF Standard #4. Meets ASME code.


STANDARD FEATURES
- 2⁄3 jacketed self-contained electric counter tilting steam kettle.

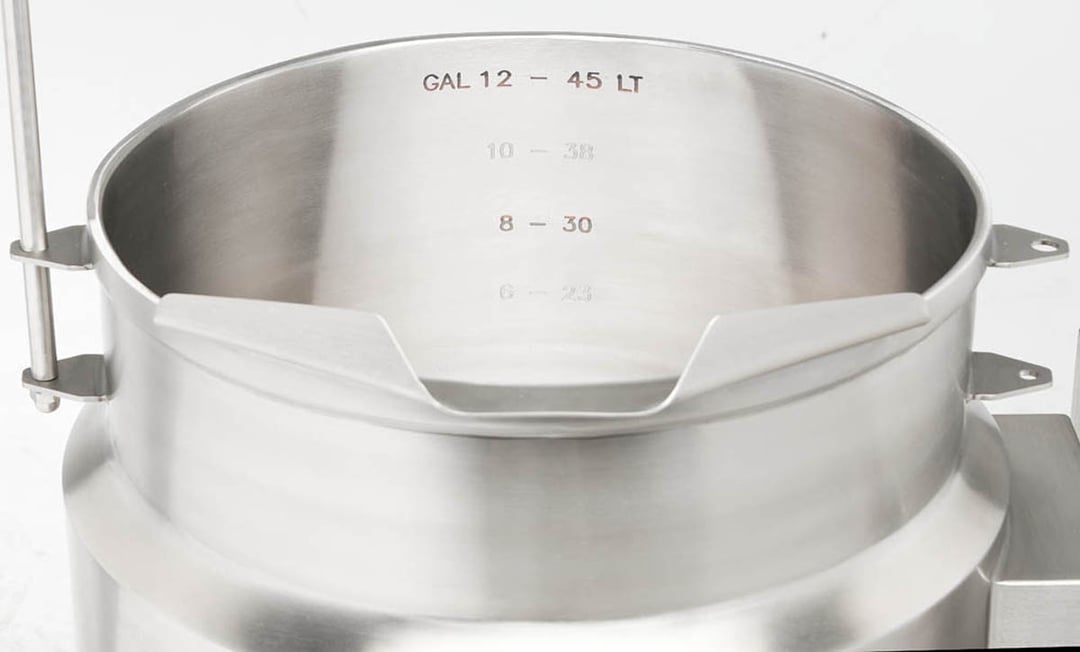

- Ellipsoidal bottom kettle liner formed and fully welded type 316 and type 304 stainless steel exterior with 1⁄4 x 5⁄8 inch bar rim with butterfly shaped pouring lip and embossed gallon/liter markings, designed to operate at a maximum of 50 psi (3.4 kg/cm2).
- Jacket contains water, rust inhibitor and antifreeze mixed to protect to 30° below zero.
- Removable electric elements are field serviceable
- Stainless steel tilt handle can be mounted on either the right or left. Two position tilt lock, upright, 100° for emptying and cleaning.

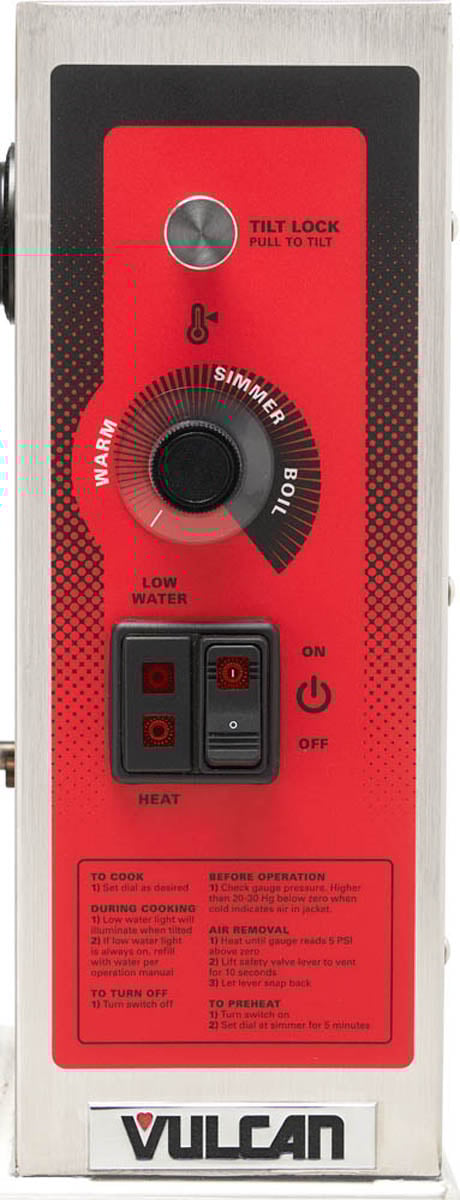

- Stainless steel water tight control housing located on the right. Controls include a power switch, indicator light, solid state temperature control, vacuum/pressure gauge, pressure relief valve, low water light and low water shut-off.
- Faucet bracket.
- Mounting base includes lugs for bolting to counter top or floor stand.
- Shipped for 208/60-50/3 electrical service. Can be field converted to 208/60-50/1 and 240/60-50/3 and 240/60-50/1.
- Heavy duty chromed thermostat knob guards.
- One year limited parts and labor warranty
